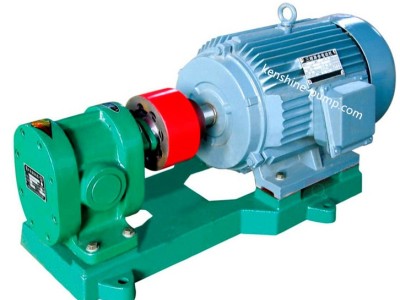

2 cy series of high-pressure gear oil pump is suitable for the transportation of fuel oil, diesel oil, machine oil, and other similar liquid. The liquids do not contain particles or fiber, and temperature is not higher than 200 ℃, the viscosity is not more than 1500 CST. The pump can be used as a transport, pressure, fuel injection, hydraulic and lubrication pump, stainless steel gear pump is suitable for conveying corrosive liquids without solid.
Application
It can be used as transmission and booster pump in oil transportation system.
In the fuel system can be used as delivery, pressure, injection fuel pumps.
A hydraulic pump used in hydraulic systems to provide hydraulic power.
It can be used as lubricating oil pump in all industrial fields.
Structure features:
The 2CY series gear oil pump is composed of pump body, pump cover, gear, bearing sleeve and shaft end seal. The gears are nitride treated and have high hardness and wear resistance. All moving parts in the pump are lubricated by the medium they are conveying.
The four bearing sleeves in the pump are installed in the pump body, and the end clearance is automatically adjusted with the working pressure, so the pressure of the pump is stable, the output flow pulsation is small, and the volume ratio is high.
2CY series gear oil pump is simple and compact in structure, easy to use and maintain, highly adaptable and efficient.
2YC series gear pump pressure is higher than other gear pumps. It is suitable for conveying pressure requirements up to 2.5MPA liquid.
