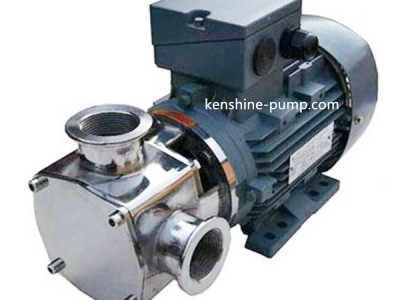

Rxb Flexible Impeller Self Priming Pump

RXB flexible impeller pump features: 1 - Strong self-absorption, perfect structure principle, 6-meter dry self-absorption, up to 9-meter with fluids 2 - Short self-priming time, instantaneous self-priming within 6 meters, completed in 2-3 seconds.

3, simple structure, convenient maintenance, no need for professional guidance, maintenance does not need to remove the pump pipe.

4, less wearing parts 5 - Small volume and small space for field equipment.

6 - High efficiency for large flow, minimum and most energy-saving power under the same flow.

7 - No noise during indoor installation 8 - Hard particles containing granular impurities can be transported.

9 - The viscosity of the conveying medium can reach 5000 centipoises Working principle for RXB flexible impeller pump: (1) the pump cavity has an eccentric convex block, when the flexible blade leaves the eccentric block, the volume between the blades increases continuously, creating a vacuum, which makes the liquid be sucked into pump cavity inlet.

(2) when the flexible blade rotation, liquid from the pump chamber suction department is brought into the discharge department.

(3) when the flexible blade again contact eccentric convex block, bending, and accompanied by a extrusion action, so that the liquid uninterrupted, pulsating out of the pump cavity, thus completing the whole process of suction and drainage.

As the core technology of flexible pump, the impeller should have good elasticity, small permanent deformation, and can withstand long-term high frequency flexion without breaking or tearing.

Excellent impeller elastomer technology determines the excellent performance and durability of the pump.

Now there are two kinds of impeller materials - sanitary grade Nitrile rubber, EPDM rubber; Nitrile impellers are mainly used in vegetable oil, mineral oil, oil containing medium and fields with higher sanitary requirements.

EPDM impeller is mainly used for weak inorganic acid, organic acid, alkali, salt, alcohol, kerosene, sewage and other medium.

RXB flexible pump advantages: Small size, large flow rate .

Easy to install and move.

Instant complete self-priming - no additional device required, no liquids filling before starting.

The suction height is up to 5 meters.

The pump body is made of stainless steel, all the gold parts are stainless steel (1Cr18Ni9Ti).

Medium viscosity up to 2000 centipoises Can transport liquid containing gas, foam liquid without air resistance Can transport medium containing suspended soft and hard particles.

The gentle action of the rotor does not damage media sensitive to shearing, such as paper dispersants.

When the flexible rotor is running, there is no metal contact and no spark.

Equipped with explosion-proof motor, it is especially suitable for the transport of alcohol, gasoline, acetone and other solvents.

Beautiful appearance, durable, easy maintenance
