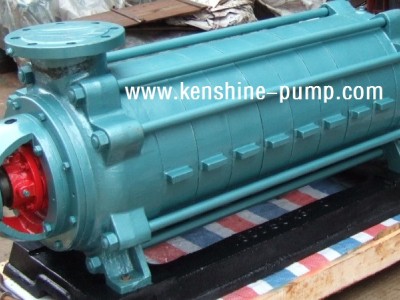

Single suction Horizontal Multistage boiler feed water pump
Boiler feed water with low middle pressure and hot water pump
DG horizontal multistage boiler feeding water pump is a multi-stage centrifugal pump for conveying clean water or other liquid similar to clean water in physical and chemical properties.
It is suitable for feed water pump of medium and low-pressure boilers or secondary high-pressure boilers, as well as high pressure water supply and drainage in factories or cities.
The temperature of conveying medium is -20DegC to 105°C, and the allowable inlet pressure is less than 0.6mpa.
Features
DG multistage type boiler feed water pump is a common horizontal centrifugal pump used together with boiler.
This type of centrifugal pump adopts the high efficiency and energy saving of hydraulic model.
It has a wide range of performance, high efficiency, long service life characteristics to replace the old type of GC type boiler feed pump.
It adopts the structure of horizontal installation, multi-stage, smooth operation, easy installation, and maintenance.
Structure:
This centrifugal pump is mainly composed of inlet and outlet water section, middle section, guide vane, impeller, shaft, shaft sleeve, bearing, bearing body, sealing parts, etc.
Pump seal: gland packing seal or mechanical seal
Pump material: cast iron, cast steel, stainless steel
Pump is connected with motor by the shaft coupling.
