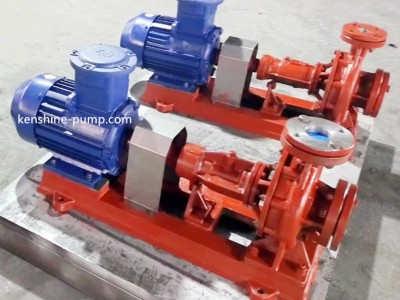

Ry Themal Oil Circulating Pump
RY themal oil centrifugal pump high temperature oil circulating pump RY thermal oil pump, hot oil pump, heat conduction oil pump is for the single stage single suction cantilever hot oil circulation pump developed by us.
The pump has the characteristics of reasonable structure, advanced technology, high efficiency, long-term stable operation in the hot state without leakage, no additional cooling system safe and reliable, high temperature heat conduction oil pump is an ideal heat carrier medium circulation pump and the oil temperature is no higher than 370DegC.
RY hot oil pump, thermal oil centrifual pump: 1 - Reasonable structure 2 - Advanced technology 3 - High efficiency 4 - Long-term stable operation without leakage 5 - Safe and reliable 6 - Oil temperature shall not exceed 370 DegC.
7, The pumped liquid does not contain solid particles RY thermal oil pump, hot oil pump centrifugal pump is widely used in petroleum, grease, boiler, construction, road maintenance, pharmaceutical, plastics, rubber, fiber containing textile, dyeing and other industrial fields.
The pump is an ideal heat carrier medium circulating pump, The pumped liquid temperature is no higher than 350DegC.
RY thermal oil, heat conduction oil pump is a single-stage cantilever structure divided into foot support and center support, the inlet of the pump is axial suction, the outlet is vertical upward for the center.
The pump and drive motor are mounted on the same base through an elastic coupling.
No cooling system is needed for the whole unit.
Ry heat conduction oil pump is mainly composed of shell, rotor, bearing, seal and other parts.
It adopts packing seal structure and additional temperature resistant oil seal to play the role of auxiliary seal.
The pump and motor are connected by three-jaw elastic coupling.
Ry heat conduction oil pump changes the traditional hot oil pump structure from the design.
The pump adopts the cooling way of natural heat dissipation to reduce the volume of the pump and make the structure simple and save the operation cost.
