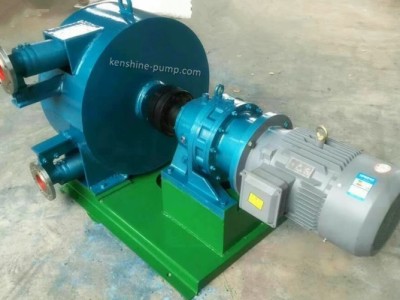

RGB peristaltic slurry pump

RGB peristaltic pump/ hose pump/tube pump/industrial pump/slurry pump

RGB series hose pump (also known as peristaltic pump) works by squeezing the hose with rollers or sliders. Pumps can operate in dry condition without liquid, self-priming, and handle high viscosity and high wear media. The pump body does not need to be sealed, has no leakage, and can output a fixed flow rate every time it rotates. It has the characteristics of low speed and no noise, and is widely used in metallurgy, rare earth, desulfurization and environmental protection, water treatment, papermaking, painting, titanium dioxide, compound fertilizer and other industries. This series of pumps comes in two forms: single- tube and double- tube.

Advantages:

a. Strong self-priming ability, with clean water suction range of up to 8m;

b. Unique structure, no sealing is used, so there will be no leakage;

c. Can transport corrosive slurries, sludge, etc. containing a large amount of particles, fibers, or other impurities;

d. Low medium flow rate and no shear force, especially suitable for conveying materials sensitive to shear force;

e. Can transport high viscosity media, as well as three-phase mixed media of gas, liquid, and solid;

f. By adjusting the speed of the pump, the flow rate can be adjusted while the outlet pressure of the pump remains basically unchanged;

g. When the speed is constant, adjusting the outlet valve can change the outlet pressure of the pump, while the flow rate remains basically unchanged. Therefore, this pump has a certain metering function and can be used as a metering pump;

h. By using different hose materials, it can be adapted to different media.

This pump is particularly suitable for corrosive media with high solid content and viscosity, and has superior self-priming performance. It is widely used in industries such as smelting (gold, silver, copper, lead, zinc, tin, nickel, cobalt, manganese), phosphate compound fertilizers, titanium dioxide, citric acid, rare earths, rare metals, inorganic salts, desulfurization and environmental protection, water treatment, papermaking, painting, etc. The specific applications are as follows:

a. Transportation of drilling mud and organic solvents such as crude oil, gasoline, kerosene, and fuel oil in the petroleum industry;

b. Acid, alkali, salt, phosphoric acid slurry, titanium dioxide slurry, and calcium citrate in the chemical industry; Crystallization liquid, suspension liquid, latex, resin, soft mud, and various material liquids;

c. Slurry transportation and rare metal liquid transportation in the smelting industry;

d. Drug delivery in the pharmaceutical industry;

e. Transportation of mud, lime slurry, and impurities in the water treatment and desulfurization industry;

f. Transportation of cement mortar in the construction industry;

g. Material transportation in the food industry;

h. Pulp and sulfur pulp transportation in the papermaking industry;

i. The transportation of ceramic glaze slurry in the ceramic industry;

j. The transportation of materials with poor fluidity such as paint, coatings, latex, etc. in the paint industry;

k. Toothpaste, emulsion, shampoo, conditioner, face cream, facial oil, etc. in the cosmetics industry;

l. Yeast, diatomaceous earth, wine tanks, syrups, ingredients, concentrates, gas-liquid mixtures in the beer industry.
