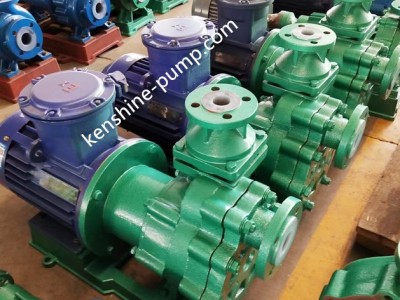

Fluoroplastic liner self-priming magnetic pump
ZMD fluoroplastic liner self-priming magnetic pump is our company's new generation of corrosion resistant self-priming magnetic pump.
It not only has the advantages of fluorine plastic magnetic pump, but also has self-priming function.
The pumps can be widely used in chemical industry, non-ferrous metal smelting, pesticide, acid and alkali production, paper making, pickling process, rare earth separation, electroplating, electronics, foils, acid and alkali discharge and other industries.
The flow parts are lined with fluorine plastic, and the pump body is made of metal material, which can bear the weight of the pipeline.
The pump cancels the shaft seal, use the magnetic coupling drive, no drip leakage phenomenon, to ensure safe production conditions.
It is highly efficient and energy saving, safe and practical.
The pump body of self-priming pump is composed of liquid storage chamber, impeller, sealing ring and other parts.
Suction height is 2 to 4meters.
Without the bottom valve and irrigation, self-priming height is for 4 meters, before starting the pump cavity filled with liquid, to achieve the role of self-priming to complete pumping.
Flow range: 3.6m³/h-60m³/h
Head range: 25m-48m
Power range: 2.2KW-18.5KW
Applicable medium: moderate concentration of acid, alkali, salt, organic solvents, etc
Medium temperature: -20 to 100 degrees Celsius.
