CQCB magnetic gear pump

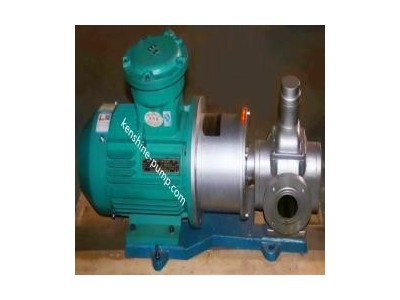

YCBCL gear oil pump with magnetic coupling

The pump shaft and inner magnetic rotor of YCBCL type magnetic drive gear pump are completely enclosed by the pump body and isolation sleeve, completely solving the problem of "running, emitting, dripping, and leaking", eliminating the safety hazards of various flammable, explosive, toxic, and harmful media leaking through the pump seal, effectively ensuring the physical and mental health and safety production of employees The gears in the YCBCL type magnetic drive gear pump adopt advanced tooth profiles composed of circular arcs and other curves, thereby giving the pump excellent working characteristics. Compared with the traditional involute gear pump, the gear pump with this profile has the advantages of small pressure fluctuation, low noise, high efficiency, long life, etc. It is a new series of energy-saving gear pump.

Structural features:

Half of the magnetic coupling (inner magnet) is installed on the pump shaft and sealed inside the pump body with an isolation cover made of non-ferromagnetic materials, while the other half (outer magnet) is installed on the motor shaft. Outside the isolation cover, the inner magnet is driven by magnetic force to rotate and drive the pump to work without leakage. Its bearings are made of self-lubricating materials and lubricated with the delivered liquid.

Performance range

Flow range: 0.6m3/h -80m3/h

Rated discharge pressure: 0.6MPA

Maximum operating temperature: 250 degrees Celsius

Product advantages

1. All operating components inside the pump are lubricated with conveying media

2. Equipped with safety valve overload protection

3. The magnetic transmission device adopts rare earth permanent magnet material, which is fully sealed, leak free, safe and reliable.

application area

Widely used in industries such as petroleum, chemical, pharmaceutical, smelting, electroplating, environmental protection, food, national defense, etc., it brings high economic and social benefits to production enterprises in terms of increasing production and saving costs, eliminating pollution, protecting the environment, safety production, and labor protection. Magnetic driven gear pumps are ideal equipment for conveying flammable, explosive, volatile, toxic, rare and precious liquids, as well as various corrosive liquids. For corrosive or high hygiene requirements, stainless steel gear pumps can be selected
