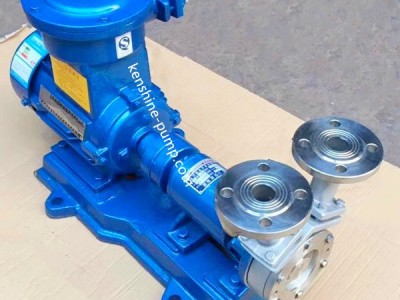

Stainless steel vortex water pump
W type vortex pump is a single stage cantilever type vortex pump and the pump inlet and the outlet direction is vertical upward.
Impeller of vortex pump can be free to move along the axis on the shaft, to ensure the shaft gap of the impeller, the pump body and the pump cover on both sides is the same.
It allows to adjust the gap with paper pad.
The shaft seal of the pump is divided into packing seal and single end face mechanical seal.
The pump and the motor are assembled on the common base.
W-type vortex pump is used for conveying the liquids with the temperature -20℃ to 80℃ and viscosity not greater than 5E, without solid particles.
The pump has small volume, light weight, good appearance.
W type vortex pump is easy for maintenance and it is suitable in chemical, oil, light textile, electric power and other industrial for water circulation and supply and transportation of production water, industrial boiler feed water, heating water, water supply in high-rise buildings, fire protection, in addition to the thermal cycle and manufacturing refrigeration cooling purposes and canteen, high-pressure water of tableware disinfection in catering etc.
Flow rate: 0.7m3/h to 14.4m3/h
Head: 20m to 105m
Motor power: 0.75KW to 11KW
Speed: 2900RPM
