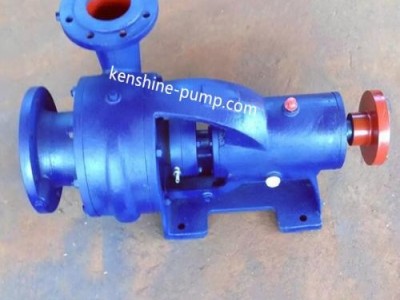

N, NBA Condensate water pump
NBA condensate water pump is a single stage single suction cantilever centrifugal condensing pump.
GN, GNL type pump is for two-stage single suction condensate water pump.
Condensate water pump is suitable for power plant, power plant to convey condensed water and other liquids with chemical and physical properties similar to the condensed water.
They are used for pumping water in the condenser and 750 ~ 3000 kw turbogenerator set pumping water or other liquids with physical and chemical properties similar to water.
The pump has good suction ability.
Type 100N130 and 150N110 pumps are used to transport liquid with the temperature below 120℃.
Other pumps are used to transport liquid with the temperature not exceeding 80℃.
The inlet pressure of the pump is not higher than 0.6MPa.
Pump body, pump cover: cast iron
Bronze impeller
Carbon steel shaft.
