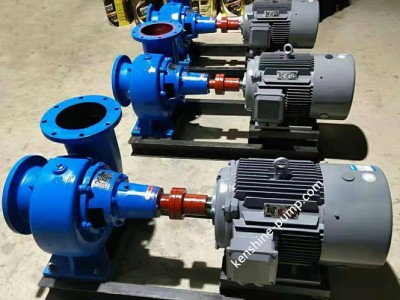

Horizontal Vortex Shell Mixed Flow Water Pump

Horizontal single stage single suction vortex shell mixed flow pump

Vortex shell type mixed-flow pump is suitable for conveying water or other liquids with physical, chemical properties similar to water.

The temperature of the liquid should not be higher than 80℃.

Mixed flow pump is Widely used in farmland irrigation and drainage, industrial and urban water supply and drainage and other occasions.

Horizontal vortex shell mixed flow pump is a kind of pump commonly used in irrigation and drainage in farmland.

Depending on the installation and use conditions, such as installation position, pipeline length and so on, there are different outlet directions, the head is more than 3 to 8 meters.

General small and medium-sized vortex shell mixed-flow pump are for closed impeller.

Agricultural pumps are often sealed with lead asbestos powder or oil-impregnation flax soft packing.

The diameter below 300 mm is mostly vertical outlet, while the diameter above 300 mm is mostly horizontal outlet.

In order to reduce the length of the pipeline and the number of bends, inclined outlet is often used.

The vortex shell mixed-flow pump has the advantages of simple structure, reliability and easy maintenance.

The performance of the pump is good, the efficiency and power curve is flat, the range of use is wide, the power of the closing point is small, the cavitation performance is good, the use of the head is 3 to 15 meters.

Vortex shell type mixed flow pump has generally the larger shell/casing with larger area, but the height is generally lower.

Vortex shell type mixed flow pump has two kinds of horizontal and vertical.

Horizontal pump according to the direction of water outlet is divided into horizontal, vertical and inclined etc.

three types.

Model significance: 300HW-8A Diameter of pump inlet and outlet (mm)

HW -- Horizontal vortex shell mixed flow pump

8 -- Design head (m)

A -- cutting the outer diameter of the impeller or changing the impeller with different performance.

Flow rate: 140 to 9000m3/h, head: 3.7 to 20m.

Driver: Electric motor or diesel engine.
