Petrochemical process pump

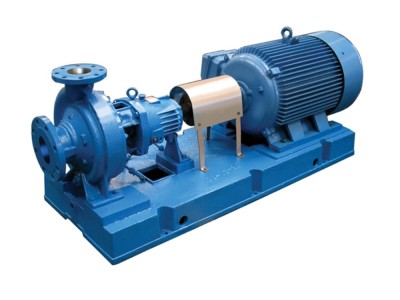

ZA series pump for horizontal, axial suction, single - stage single - suction centrifugal pump.
The pumps can transport all kinds of clean liquids, low temperature and high temperature liquids containing particles and the flammable, explosive, corrosive liquids.
ZA pump is mainly used in oil refinery, petrochemical industry, power plant, general industrial process, offshore industry, etc.
The packing box has cooling or heating pipe joints.
Shaft seal can be for packing seal, also can be single or double end mechanical seal equipped with cooling, flushing or sealing fluid system.
Performance parameter
Diameter (DN): 25 to 400 mm
Flow rate(Q): 2-2600 m3 / h
Head(H) 5-300m
Pressure(P) up 2.5mpa
Liquid Temperature: -20 to 180℃ main application
Oil refinery, petrochemical industry, coal processing industry and low temperature engineering
Chemical industry, paper industry, pulp industry, sugar industry and other ordinary process industry
Water supply plant, seawater desalination plant
Heating and air conditioning system
Mixer plant
Environmental protection project
Ship and Marine industry, etc
